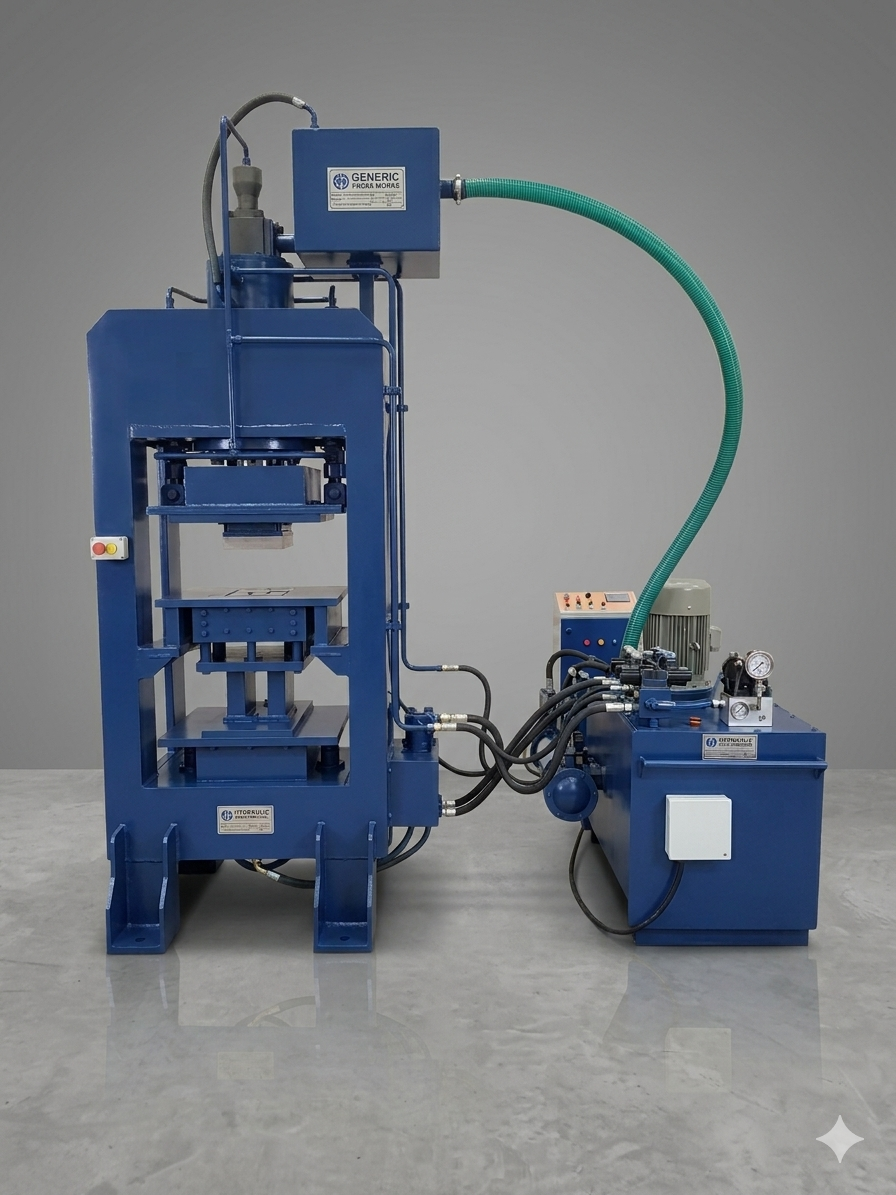

SVW 12KVT Fully Automatic High-Pressure Hydraulic Clay Art & Brick Machine
Model Reference: SVW 12KVT Fully Automatic High-Pressure Clay Art Machine (Quotation Ref: 23-08-2026)
Manufactured by Vagheshwari Engineering Works in Morbi, Gujarat, the SVW 12KVT Fully Automatic High-Pressure Hydraulic Clay Art & Brick Machine is purpose-built for the architectural ceramics and premium terracotta manufacturing industry. Operating with an extraordinary 120–150 Tons of hydraulic compression (3500–4000 PSI), it compacts semi-dry clay formulations into ultra-dense, razor-sharp green bricks, terracotta floor/wall tiles, and intricate decorative facade screen jali without drying warpage or firing distortion. The complete plant includes a 10 HP heavy-duty hydraulic power pack fitted with premium Yuken / Spyca directional manifold valves, an integrated hydraulic oil cooler for thermal stability during 8-hour continuous shifts, a Siemens accessories PLC control panel with a 7-inch color HMI touchscreen supporting custom speed and pressure profiling, an 18 ft material feeding belt conveyor (2.0 HP motor), a 500–700 kg feeding hopper, and an automated palletizing mechanism. Operating on a compact 12 HP connected 3-phase power load, it delivers 2,000 to 2,500 premium architectural pieces per day.
Key Highlights & Capabilities
- Specialized Architectural Aesthetics: Engineered specifically for high-value architectural facing bricks, exposed masonry, terracotta pavers, and ornamental facade screen jali.
- 120–150 Tons Compaction: High hydraulic pressure (3500–4000 PSI) yields ultra-dense green ware with crisp corners that resist deformation during kiln firing.
- Siemens PLC with 7-Inch HMI: Touchscreen interface enables digital control over pressing pressure, cycle timing, automated stroke counts, and instant diagnostic fault reporting.
- Yuken / Spyca Hydraulic Circuit: Premium Japanese/international grade valve architecture paired with an integrated oil cooler for continuous production without thermal throttling.
Pricing is configuration-dependent based on custom architectural die requirements (facing bricks vs terracotta tiles vs decorative screen jali), feeding hopper automation, and conveyor layout. Contact us for an itemized factory quotation.
Select Machine Configuration & Setup
SVW 12KVT Architectural Clay & Tile Machine
Model Code: SVW 12KVT Series
Hydraulic Press & Electrical Infrastructure
- 120–150 Tons intense hydraulic compaction eliminates internal micro-voids, ensuring zero warping and razor-sharp geometric edges.
- High-pressure hydraulic manifold utilizing genuine Yuken / Spyca brand directional and pressure control valves.
- High-speed prefill hydraulic cylinder system enables rapid stroke cycling without pressure drop.
- Integrated forced-air hydraulic oil cooler maintains fluid viscosity and seal longevity during continuous 8-hour industrial shifts.
- Programmable multi-stage pressure and decompression curves to suit varying clay plasticities and prevent trapped air delaminations.
Ensure an industrial 3-phase electric connection (415 V) is available before machine delivery to permit immediate commissioning and motor testing by our visiting technician.
Base Quotation Package vs Optional Upgrades
Transparent breakdown of all equipment included in standard plant pricing versus modular upgrades.
- SVW 12KVT High-Pressure Hydraulic Clay Art Press Unit (120–150 Ton)
- 10 HP Hydraulic Power Pack with 450L Oil Tank
- Yuken / Spyca Hydraulic Directional & Relief Valves
- Integrated Hydraulic Oil Cooler Unit
- Siemens Accessories PLC Control Panel with 7-Inch Color HMI Touchscreen
- Customizable Speed and Multi-Stage Pressure Profiling Software
- 18 Ft Heavy Material Feeding Belt Conveyor with 2.0 HP Motor
- 500–700 kg Capacity Material Feeding Hopper
- Automatic Palletizing and High-Speed Material Prefill Mechanism
- Standard Factory Maintenance Toolkit & Operating Manual
- Precision Hardened Tool-Steel Dies for Architectural Facing Bricks
- Terracotta Floor & Wall Tile Mould Dies (Chamfered, Grooved, or Textured)
- Intricate Decorative Clay Screen Jali (Breeze Block) Precision Dies
- Clay Pug Mill / Heavy-Duty Double Shaft Clay Extruder Unit
- Heavy Roller Clay Pan Mixer for Uniform Moisture Dispersion
- Perforated Drying Racks & Heavy Pallet Trolleys for Green Clay Handling
Commercial Quotation Breakdown
Reference Model: SVW 12KVT Fully Automatic High-Pressure Clay Art Machine • Quotation Reference: 23-08-2026
Verified quotation dated 23-08-2026 provided as commercial reference. Exact pricing depends on die complexity and custom product dimensions.
Buyer Suitability & Plant Planning Guide
Target Production Scale
Architectural Ceramic Units, Heritage Tile Makers & Clay Product Manufacturers (2,000 to 2,500 pcs/day)
Recommended For
Ceramic tile manufacturers, terracotta facade artisans, heritage restoration contractors, and modern brick makers seeking to produce premium, high-margin architectural clay products including decorative screen jali, facing bricks, and terracotta tiles.
Key Plant Site Considerations
- Moisture Control: Clay feedstock should be processed at semi-dry moisture levels (typically 8%–12%) for optimal hydraulic press compaction and minimum shrinkage.
- Electrical Supply: Modest 12 HP 3-phase industrial power supply (415 V, 50 Hz).
- Die Tooling: Precision hardened dies are custom fabricated based on the buyer's CAD profiles for bricks, pavers, tiles, or screen jali.
- Firing & Drying Infrastructure: Suitable for pairing with traditional downdraft kilns, tunnel kilns, or specialized terracotta drying rooms.
Engineered for Premium Architectural Ceramics & Terracotta
120–150 Tons high-pressure compression produces dense, distortion-free green products across architectural categories.
Architectural Facing Bricks
Ultra-dense, razor-sharp exposed masonry bricks with smooth or wire-cut finishes that maintain dimensional stability during kiln firing.
Terracotta Floor & Wall Tiles
Heavy-duty pressed terracotta pavers, roof edge tiles, and interior/exterior decorative cladding panels.
Decorative Screen Jali
Intricate perforated clay facade breeze blocks for natural ventilation, acoustic diffusion, and passive solar shading.
Heritage Restoration Clay Ware
Custom-profiled historic bricks and ornamental clay elements matching archaeological and conservation specifications.
Verified Technical Specifications
Engineering parameters verified from factory records and owner quotations
| Parameter | Verified Specification |
|---|---|
| Machine Model | SVW 12KVT High-Pressure Clay Art & Brick Machine |
| Machine Type | Fully Automatic High-Pressure Hydraulic Clay Art Press |
| Hydraulic Pressing Force | 120–150 Tons (Operating Pressure: 3500–4000 PSI) |
| Target Applications | Architectural Facing Bricks, Terracotta Floor/Wall Tiles, Decorative Clay Screen Jali |
| Daily Production Capacity | 2,000–2,500 Pieces / Day (8-Hour Shift) |
| Mould Cycle Time | 15–18 Seconds per stroke |
| Output Per Stroke | 1 Piece Brick, Tile, or Jali / Stroke |
| Hydraulic Power Pack | 10 HP Motor with 450L Oil Tank, Integrated Oil Cooler & Yuken/Spyca Valves |
| Hydraulic Valves Brand | Genuine Yuken / Spyca High-Pressure Hydraulic Manifold |
| Control Automation | Siemens Accessories PLC Panel with 7-Inch Color HMI Touchscreen |
| Pressure Profiling | Customizable speed and multi-stage pressure curves via HMI |
| Conveyor System | 18 Ft Heavy Belt Conveyor with 2.0 HP Electric Motor |
| Material Feeding Hopper | 500–700 kg Capacity Continuous Storage Hopper |
| Total Power Requirement | 12 HP Total Load (10 HP hydraulic pack + 2 HP conveyor), 3-Phase 415 V |
| Handling & Palletizing | Automatic Palletizing & High-Speed Material Prefill System |
| Operating Labour | 4–6 Workers (clay preparation, handling, drying yard management) |
| Manufacturing Origin | Morbi, Gujarat, India (Pan-India Dispatch & Commissioning) |
Compatible Raw Materials
Frequently Asked Questions (Buyer & Technical Guidance)
How does the SVW 12KVT clay machine control clay moisture and prevent firing distortion?↓
The machine uses semi-dry hydraulic pressing technology, operating with clay moisture levels controlled between 8% and 12%. Because of the massive 120–150 Ton pressing force (3500–4000 PSI), particles are mechanically packed to maximum density with minimal free water. This drastically reduces drying shrinkage and prevents firing distortion, warpage, and edge cracking compared to wet-extruded clay methods.
What types of terracotta, tile, and decorative screen jali products can this machine manufacture?↓
The SVW 12KVT is engineered for architectural terracotta versatility: (1) smooth or textured exposed facing bricks, (2) terracotta floor and wall tiles, (3) decorative clay screen jali (perforated architectural facade breeze blocks), (4) clay pavers for landscaping, and (5) custom restoration tiles for heritage building conservation.
How are custom dies fabricated and mounted for different architectural profiles?↓
Dies are precision CNC-machined from high-grade hardened alloy tool steel to match the buyer's exact architectural drawings and dimensions. The quick-change mould mounting system allows operators to swap between standard brick moulds, tile plates, and intricate multi-core screen jali dies in under an hour.
What is the pressing force and production capacity of the SVW 12KVT machine?↓
The machine generates 120–150 Tons of hydraulic pressing force at 3500–4000 PSI. It operates on a single-piece-per-stroke configuration with an automated cycle time of 15–18 seconds, delivering a steady daily output of 2,000 to 2,500 architectural pieces per 8-hour shift.
What are the electrical power requirements and hydraulic valve specifications?↓
The entire plant operates on an efficient 12 HP connected load (3-phase, 415 V, 50 Hz), comprising a 10 HP hydraulic power pack and a 2 HP motor for the 18 ft feeding conveyor. The hydraulic manifold is built with premium Yuken / Spyca brand valves and an integrated forced-air oil cooler to ensure reliable continuous operation.
What commercial terms, warranty, and on-site erection support are provided?↓
Quoted on an ex-factory Morbi (Gujarat) basis with a standard 25–30 day dispatch timeline. Shree Vagheshwari Engineering Works provides free on-site technician erection, hydraulic commissioning, and operator training (buyer covers travel and lodging). Electric motors are backed by a 12-month manufacturer warranty.
Ready to Configure Your Brick Manufacturing Plant?
Contact Shree Vagheshwari Engineering Works directly in Morbi, Gujarat. We provide complete technical consultation, customized die fabrication, and transparent itemized factory quotations.
