Fully Automatic Fly Ash Brick & Block Machine
Model Reference: SVW 10 Bricks (10 KVT) & 8 KVT Configurations (4-in-1 Multipurpose)

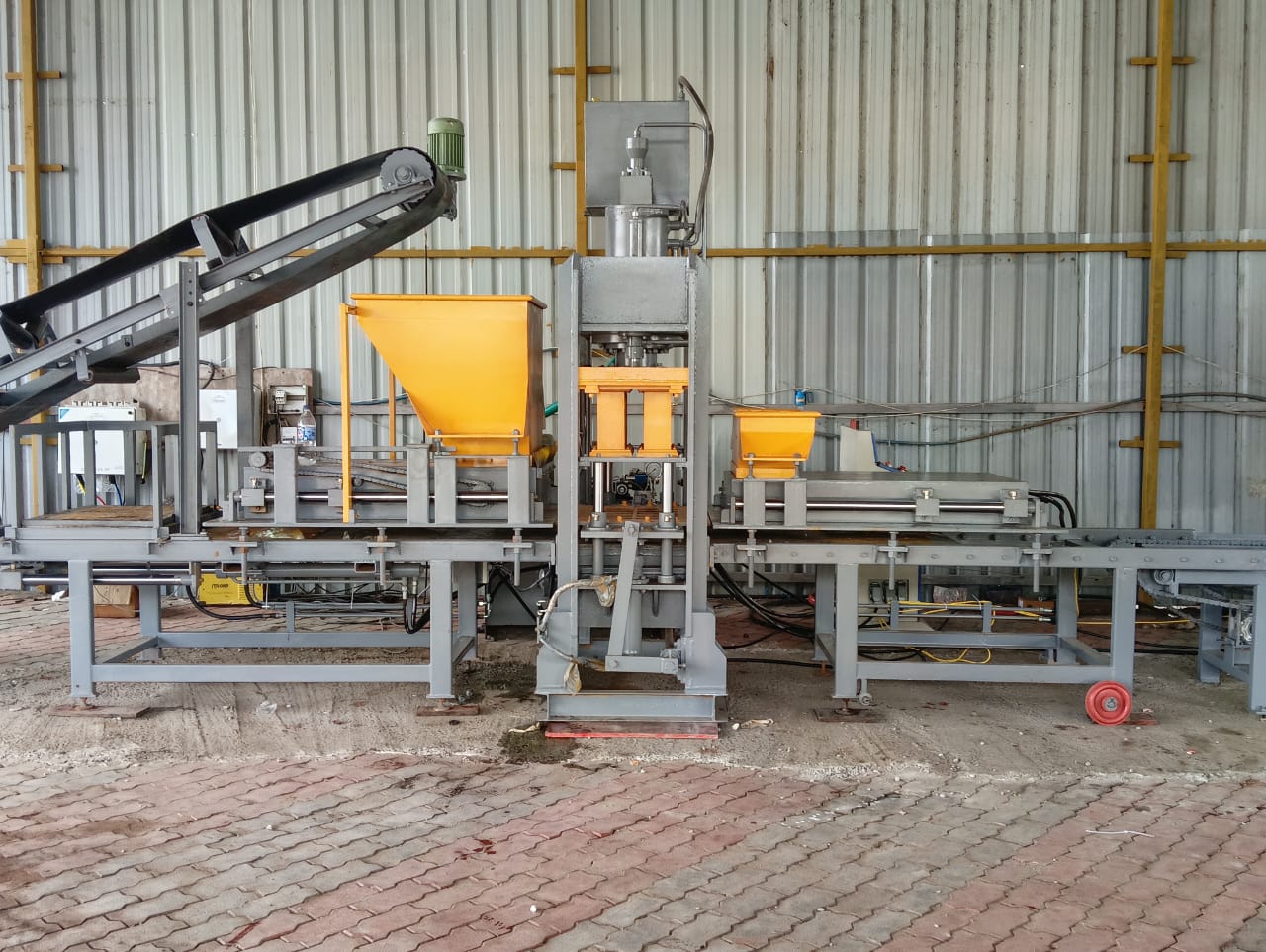

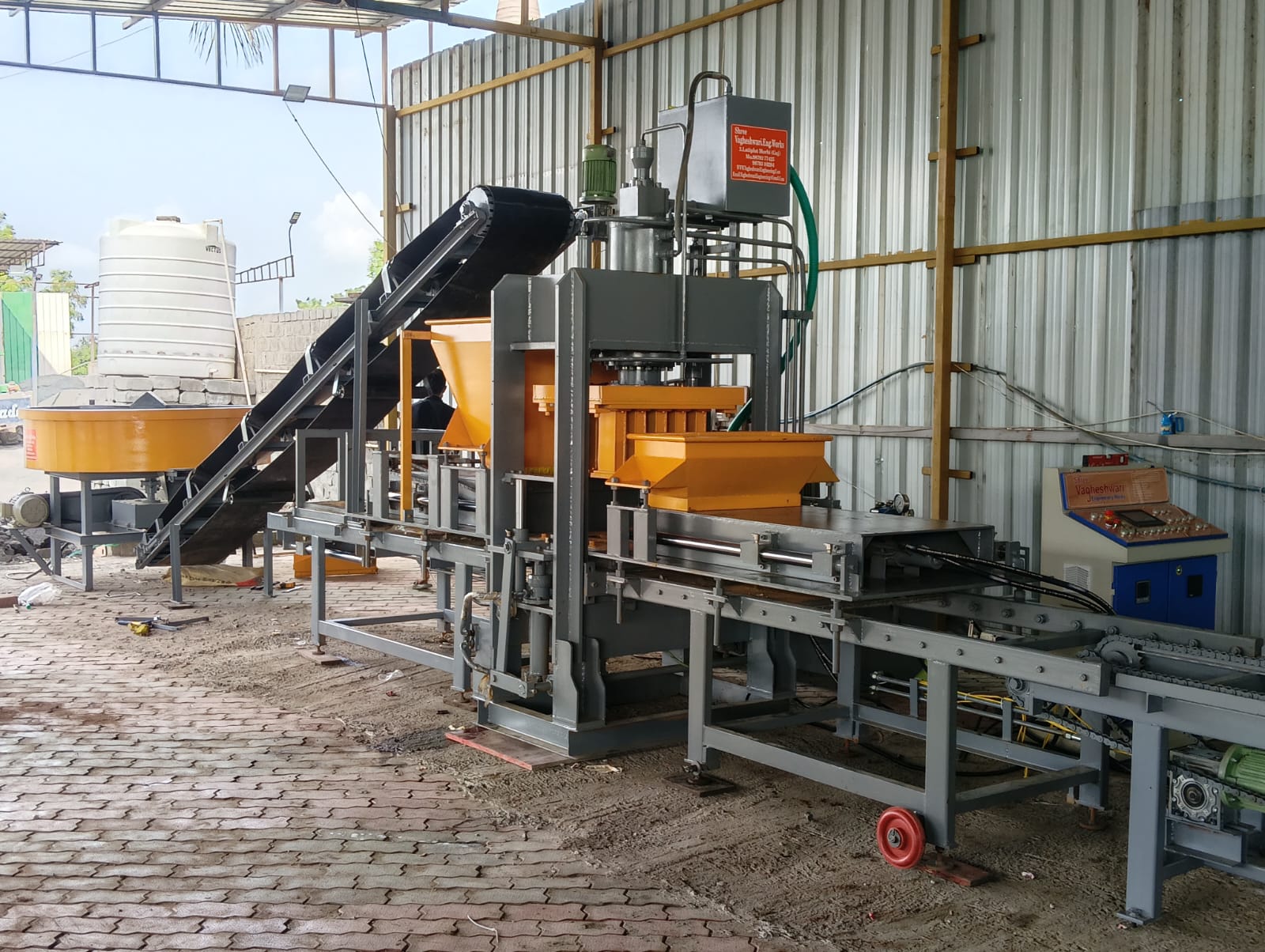

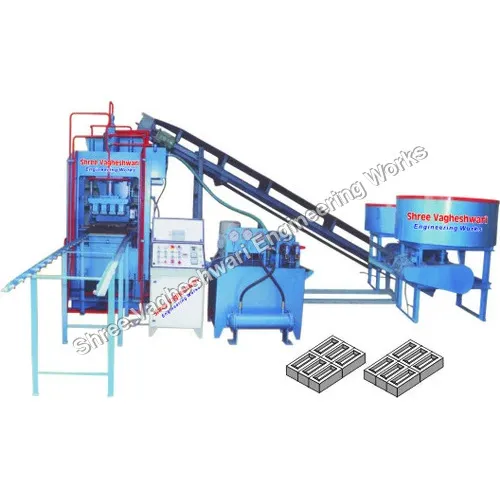

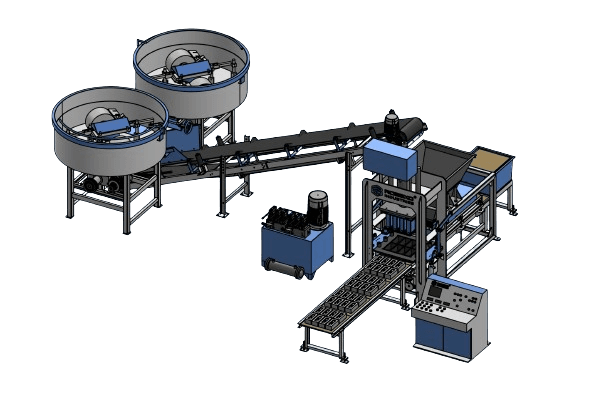

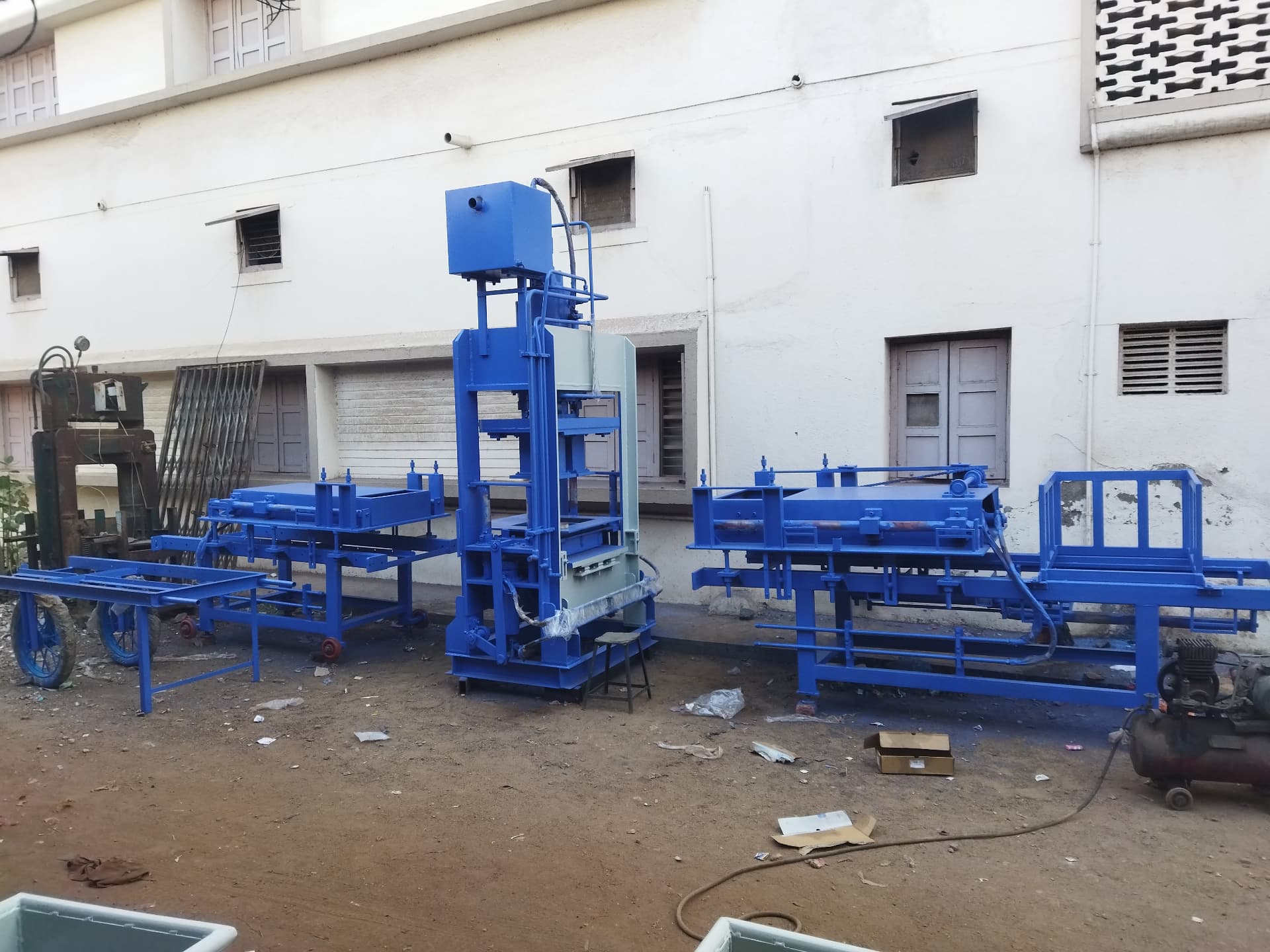

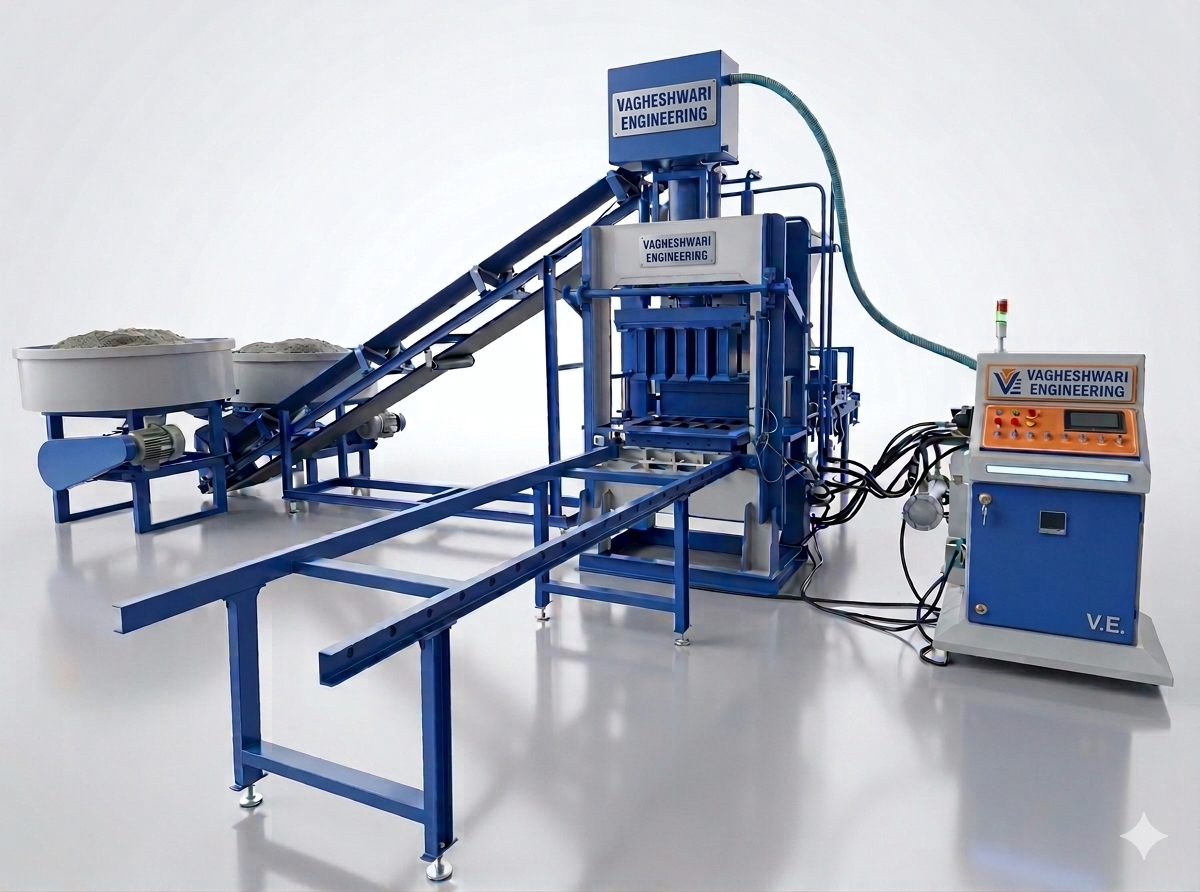

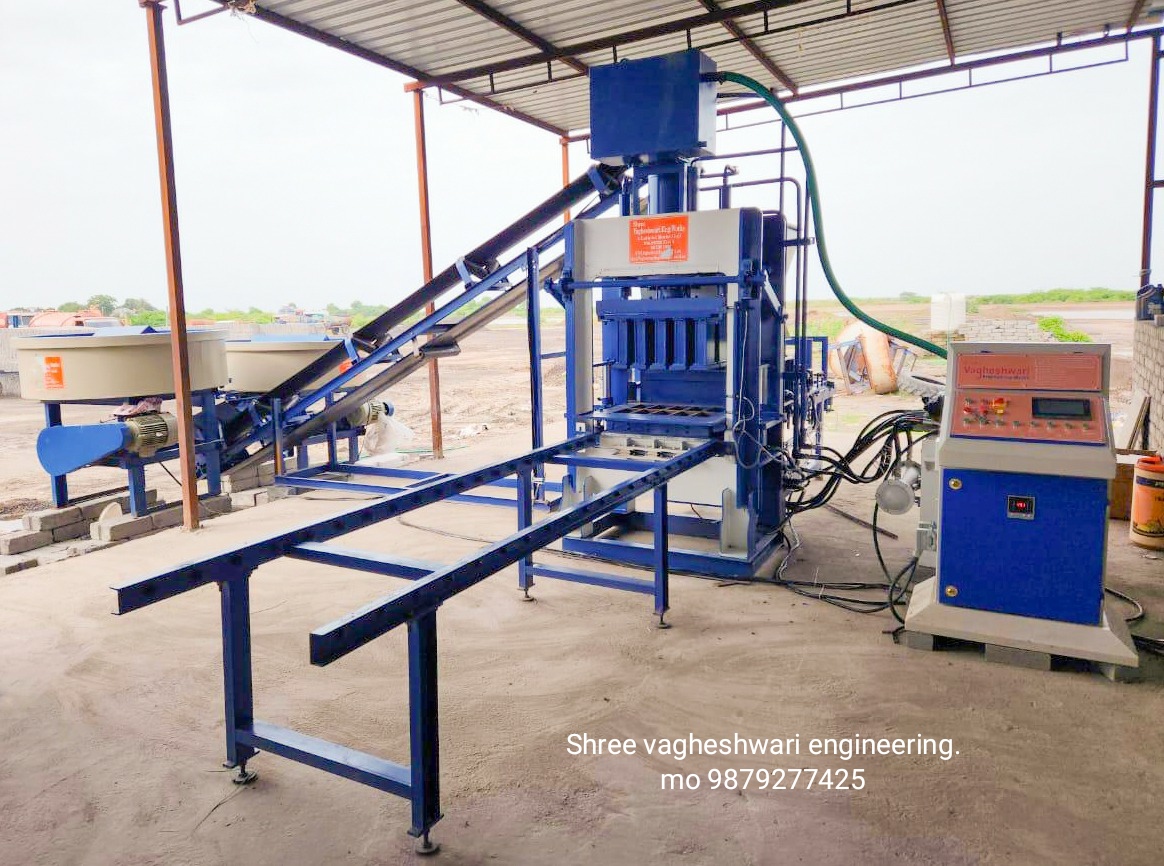

Manufactured by Vagheshwari Engineering Works in Morbi, Gujarat, our Fully Automatic 4-in-1 Multipurpose Machine produces high-density fly ash bricks, solid concrete blocks, and interlocking pavers by interchanging precision dies. Powered by double-cylinder hydraulic pressing (80–120 Ton), Siemens PLC automation with a 7-inch HMI touchscreen, dual 5 ft roller pan mixers, and an 18 ft feeding conveyor, this machine delivers up to 14,000 standard bricks per day.
Key Highlights & Capabilities
- Heavy-duty double-cylinder hydraulic compression ensures uniform density, sharp edges, and high compressive strength.
- Siemens PLC with 7-inch HMI touchscreen provides automated operation, fault reporting, and speed/pressure adjustments.
- 4-in-1 multipurpose versatility: supports fly ash bricks, solid concrete blocks, and paver block dies.
- Automatic material feeding, automatic pallet feeder, and synchronized conveyor system.
Pricing depends on chosen configuration (8-brick / 8 KVT vs 10-brick / 10 KVT setup), hydraulic power pack tonnage, pan mixer capacity, automatic pallet stacker inclusion, and die customizations. Contact us for the current quotation for your plant setup.
Two-Configuration Comparison: SVW 10-Brick / 10 KVT vs SVW 8 KVT Plant
SVW 10-Brick / 10 KVT Plant
100–120 Ton double cylinder hydraulic compression engineered for maximum daily volume (12,000–14,000 bricks/day) with Siemens PLC and dual 5 ft roller pan mixers.
SVW 8 KVT Plant
80–100 Ton hydraulic compression plant delivering 8,000–10,000 bricks/day with the same heavy-duty 30 HP power, dual 5 ft roller pan mixers, and Siemens PLC automation.
SVW 10-Brick / 10 KVT Plant
Model Code: SVW 10-Brick / 10 KVT (Configuration A)
Hydraulic Press & Electrical Infrastructure
- Double-cylinder balanced downward compression
- High-speed prefill hydraulic manifold for rapid cycle times
- Integrated oil cooler to maintain hydraulic fluid viscosity during 8-hour continuous shifts
Ensure an industrial 3-phase electric connection (415 V) is available before machine delivery to permit immediate commissioning and motor testing by our visiting technician.
Base Quotation Package vs Optional Upgrades
Transparent breakdown of all equipment included in standard plant pricing versus modular upgrades.
- Heavy-Duty Hydraulic Brick Pressing Unit (Double Cylinder / 80–120 Ton)
- 10 HP Hydraulic Power Pack (400L / 450L Tank with Prefill Manifold & Oil Cooler)
- 2 Units × 5 Ft Heavy Roller Pan Mixers (7.5 HP Electric Motor each, 450–550 kg batch)
- 18 Ft Heavy-Duty Belt Conveyor with 2.0 HP Electric Motor
- Siemens PLC Control Panel with 7-Inch Color HMI Touchscreen
- Standard 9 × 4 × 3 Hardened Alloy Steel Brick Mould Die (230 × 110 × 75 mm)
- 2 Units Manual Pallet Handling Hand Trolleys
- Automatic Pallet Feeder & Material Feeding System
- Standard Maintenance Tool Kit & Plant Operation Manual
- Automatic Pallet Stacker Unit (reduces manual labour for brick offloading)
- Industrial PVC Pallet Sheets (standard size for 10-brick or 8-brick moulds)
- Interchangeable Paver Block Mould Dies (Zig-Zag, Hexagon, I-Shape, Dumble)
- Solid Concrete Block and Hollow Block Precision Mould Dies
- Additional Roller Pan Mixers or Extended Conveyors
Commercial Quotation Breakdown
Reference Model: SVW 10-Brick / 10 KVT & SVW 8 KVT Multipurpose Plants • Quotation Reference: 08-09-2026 & 25-08-2026
Factory quotations provided as commercial reference only. Final quotation varies with chosen plant equipment and required plant layout.
Buyer Suitability & Plant Planning Guide
Target Production Scale
Commercial Fly Ash Brick Plants producing 8,000 to 14,000 bricks/day
Recommended For
Entrepreneurs, construction suppliers, and infrastructure contractors requiring dependable high-capacity production with minimum material wastage and automated PLC quality control.
Key Plant Site Considerations
- Ensure 3-phase commercial electrical connection (minimum 30 HP connected load).
- Factory footprint should accommodate machine, dual pan mixers, 18 ft conveyor, and pallet curing yard (minimum 5,000–10,000 sq ft).
- Raw material availability: Fly ash, stone dust/quarry sand, cement, lime, or gypsum.
Verified Technical Specifications
Engineering parameters verified from factory records and owner quotations
| Parameter | Verified Specification |
|---|---|
| Machine Type | Fully Automatic Hydraulic + Vibration Multipurpose Machine |
| Model Reference | SVW 10-Brick / 10 KVT & SVW 8 KVT |
| Hydraulic Pressing Force | 100–120 Tons (Double Cylinder) / 80–100 Tons (8 KVT) |
| Production Capacity | 8,000–14,000 Bricks / Day (depending on 8-brick or 10-brick setup) |
| Mould Cycle Time | 18–20 Seconds per stroke |
| Output Per Stroke | 10 Bricks or 8 Pavers (10-brick) / 8 Bricks or 6 Pavers (8 KVT) |
| Standard Brick Die | 230 x 110 x 75 mm (Standard 9 x 4 x 3 inch) |
| Hydraulic Power Pack | 10 HP Motor with 400L / 450L Oil Tank & Prefill Manifold |
| Operating Pressure | 3000–4000 PSI |
| Control System | Siemens PLC with 7-Inch HMI Color Touchscreen |
| Vibration System | 2.0 HP High-Frequency Vibration Motor |
| Pan Mixers Included | 2 Units of 5 Ft Heavy Roller Pan Mixers (7.5 HP each, 450–550 kg capacity) |
| Conveyor System | 18 Ft Heavy-Duty Belt Conveyor with 2.0 HP Motor |
| Material Hopper | 500–700 kg Storage Capacity |
| Total Power Requirement | Approx. 30 HP, 3-Phase Electric Supply |
| Operating Labour | 8–10 Workers + 1 Control Panel Operator |
Compatible Raw Materials
Frequently Asked Questions (Buyer & Technical Guidance)
How is the price of this fully automatic brick machine determined?↓
Pricing is configuration-dependent and provided via formal quotation. Key price drivers include the hydraulic pressing force (80–100 Ton in the SVW 8 KVT plant vs 100–120 Ton in the SVW 10-Brick plant), daily brick output (8,000–10,000 vs 12,000–14,000 bricks/day), pan mixer and conveyor inclusions, and optional upgrades like an automatic pallet stacker or PVC pallet sheets. Contact Vagheshwari Engineering Works for the current factory quotation for your required configuration.
What is the difference between the SVW 8 KVT and SVW 10-Brick / 10 KVT configurations?↓
The SVW 10-Brick / 10 KVT configuration features double-cylinder hydraulic compression with 100–120 Tons of force, producing 10 bricks or 8 pavers per stroke (12,000–14,000 bricks/day). The SVW 8 KVT configuration operates at 80–100 Tons of force, producing 8 bricks or 6 pavers per stroke (8,000–10,000 bricks/day). Both configurations share the heavy-duty 30 HP power infrastructure, dual 5 ft roller pan mixers, 18 ft conveyor, and Siemens PLC automation.
What power infrastructure is required to run this plant?↓
The complete automatic plant requires an industrial 3-phase electric connection (415 V, 50 Hz) with approximately 30 HP total connected load: 10 HP for the main hydraulic power pack, 15 HP for two 5 ft roller pan mixers (7.5 HP each), 2 HP for the 18 ft conveyor, and 2 HP for vibration motors and auxiliary controls.
What factory space and curing yard area is required to set up an 8 KVT or 10-brick plant?↓
Setting up a commercial plant requires approximately 5,000 to 10,000 sq ft of total space. This provides sufficient room for the main brick press machine, dual 5 ft pan mixers, 18 ft conveyor, raw material storage sheds (fly ash, sand/dust, cement), and an open concrete curing yard equipped with water spray curing for 8,000 to 14,000 bricks per day.
What are the on-site installation, commissioning, and warranty terms?↓
Shree Vagheshwari Engineering Works provides experienced technicians for machine erection, hydraulic fluid commissioning, electrical calibration, and complete on-site operator training with zero labor charges (free technician). The buyer covers technician travel expenses and local accommodation. Electric motors carry a 12-month manufacturer warranty.
What equipment is included in the standard plant quotation?↓
The verified base plant quotation includes the main hydraulic pressing unit, 10 HP hydraulic power pack with 400L/450L tank and prefill manifold, two 5 ft heavy roller pan mixers (7.5 HP each), an 18 ft belt conveyor (2 HP), Siemens PLC control panel with 7-inch color HMI, a standard 9x4x3 inch hardened alloy die, and two manual pallet hand trolleys.
Can this machine also manufacture interlocking paver blocks?↓
Yes. As a 4-in-1 multipurpose machine, you can produce interlocking paver blocks (e.g., Zig-Zag, Hexagon, Dumble) or solid concrete blocks simply by switching the mould die on the hydraulic press.
